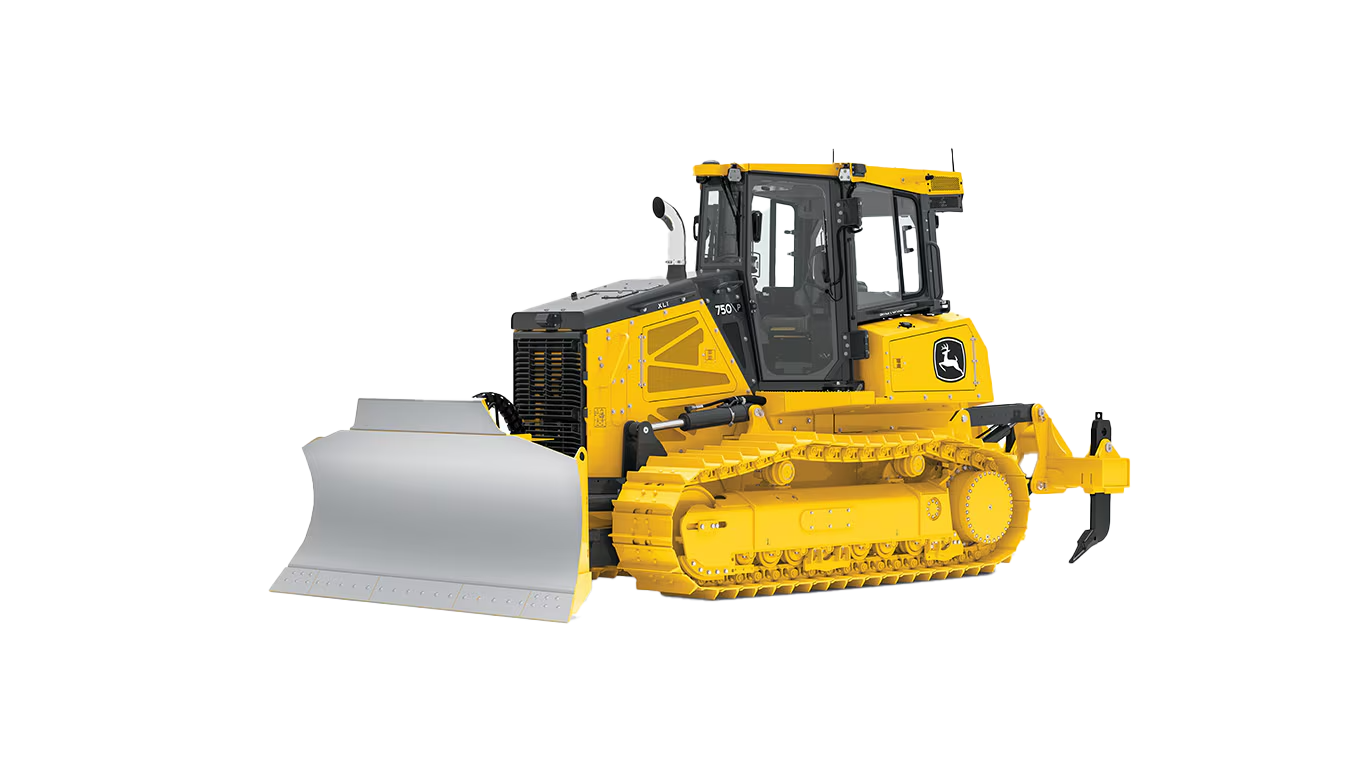

John Deere 750 P-Tier Dozer
The John Deere 750 P-Tier Dozer is built for heavy-duty grading, site prep, and dozing tasks. Equipped with a 175-hp PowerTech™ engine and hydrostatic transmission, this machine delivers smooth, consistent power and precise blade control. With an operating weight of nearly 40,000 lbs and a 13-foot wide blade capable of holding up to 5.9 cubic yards of material, the 750 P-Tier balances brute force with operator comfort. Its robust undercarriage, ground-level service access, and intelligent hydraulics make it ideal for both tough terrains and high-production environments.
Equipment Specifications
Driveline
- Engine Manufacturer: John Deere
- Engine Model: PowerTech PVS 6068
- Displacement: 6.8 L (414 in³)
- Rated Speed: 1700 rpm
- Net Power Output: 131 kW (175 hp)
- Transmission Type: Hydrostatic
- Forward/Reverse Speeds: 1F / 1R
- Final Drive: Double Reduction – Planetary
- Track Rollers: 8
- Shoe Type: Single Grouser
- Shoe Pitch: 191 mm (7.5 in)
- Ground Contact Area: 58,373 cm² (9,048 in²)
- Number of Shoes: 45
- Oscillation: Yes
Dimensions
- Max Height: 3343 mm (11 ft 6 in)
- Ground Clearance: 358 mm (14 in)
- Track Length (on ground): 3093 mm (10 ft 2 in)
- Overall Length (with blade straight): 5359 mm (17 ft 7 in)
- Track Gauge: 2134 mm (7 ft)
- Blade Width: 3962 mm (13 ft)
- Blade Dig Depth: 648 mm (25.5 in)
- Blade Tilt: 502 mm (1 ft 8 in)
Capacities
- Fuel Tank: 362 L (95.5 gal)
- Hydraulic Tank: 98 L (25.9 gal)
- Blade Capacity: 4.5 m³ (5.9 yd³)
Performance
- Max Forward Speed: 9.7 kph (6 mph)
- Max Reverse Speed: 9.7 kph (6 mph)
- Ground Bearing Pressure: 30.5 kPa (4.42 psi)
- Implement Pump Type: Variable Displacement Piston
- Pump Flow: 130 L/min (34 gal/min)
- Pump Pressure: 249.93 bar (3625 psi)
Weights
- Operating Weight: 18,133 kg (39,976 lbs)
Safety and Usage Guidelines
- ROPS/FOPS cab protects operator in rollover and falling-object incidents
- Cab features high visibility and ergonomic controls to reduce operator fatigue and error
- Auto-idle and eco modes support quieter operation and fuel savings
- Standard backup alarm, lighting package, and optional camera system for enhanced awareness
- Dual-mode hydrostatic drive improves control during precision grading or high-load pushing
- Wide undercarriage with high track contact area provides excellent stability and reduced slippage
- Safe servicing with grouped ground-level checkpoints and top-deck access
- Low ground pressure minimizes site disruption and increases float on softer materials
- Meets ISO standards for steering, braking, and operator protection systems
- Ideal for large job sites, slope work, and site preparation with high material demand
