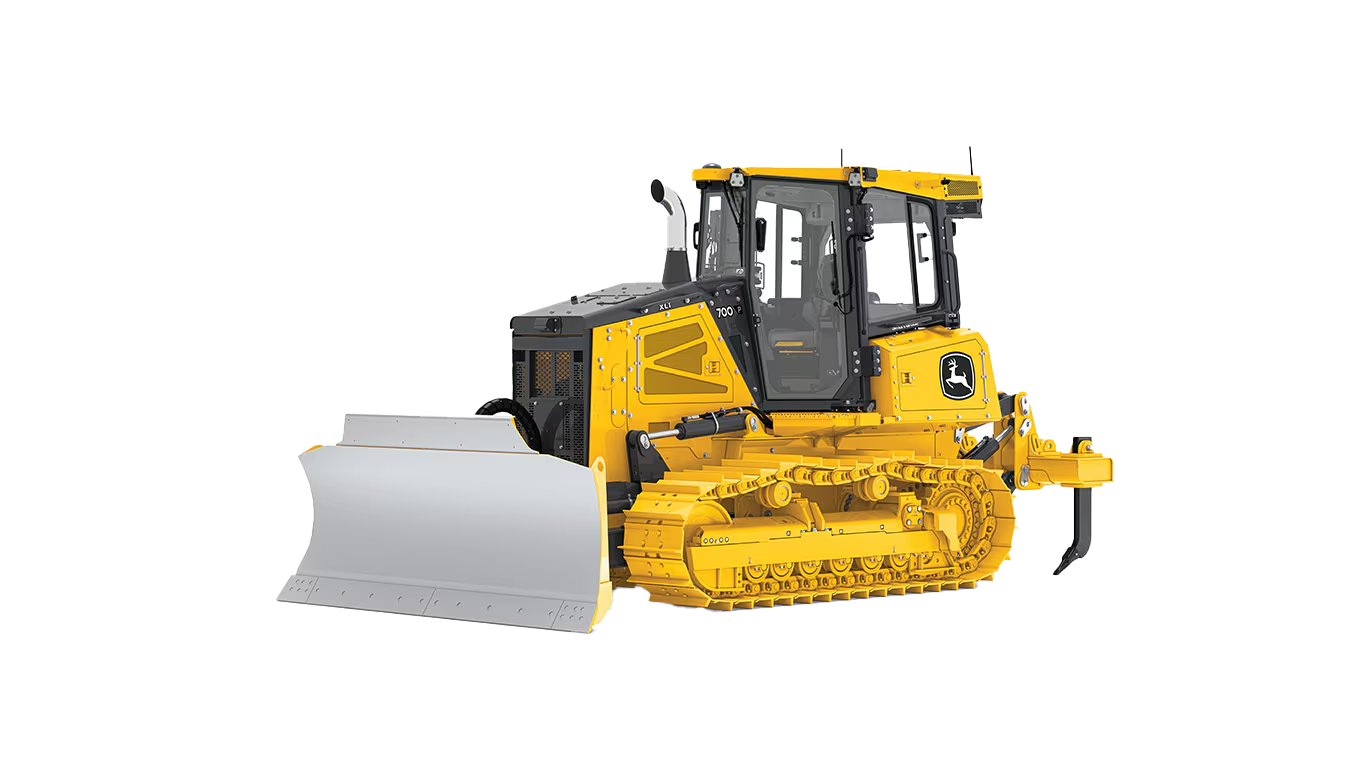

John Deere 700 P-Tier Dozer
The John Deere 700 P-Tier Dozer is a powerful mid-size crawler designed for heavy-duty grading, site preparation, and earthmoving. Powered by a 135 hp PowerTech engine and hydrostatic transmission, it delivers smooth, responsive control across varying terrain. The 11 ft 1 in wide PAT blade holds up to 4.8 cubic yards, making it highly productive in both rough cut and fine grade applications. With a spacious ROPS/FOPS-certified cab, low ground pressure, and 32,000 lbs of operating weight, the 700 P-Tier combines performance, stability, and operator comfort for demanding jobsites. It’s built to push with confidence and precision.
Equipment Specifications
- Engine Model: John Deere PowerTech PVS 6068
- Net Horsepower: 135 hp (101 kW) @ 1800 rpm
- Displacement: 6.8 L (414 in³)
- Transmission: Hydrostatic, Triple Reduction Final Drive
- Track Rollers: 7 per side
- Shoe Type: Single Grouser
- Shoe Pitch: 7.5 in (191 mm)
- Ground Contact Area: 6851 in² (44,201 cm²)
- Number of Shoes: 39
- Oscillation: Yes
- Max Height: 10 ft 4 in (3138 mm)
- Ground Clearance: 15.2 in (387 mm)
- Track Length on Ground: 8 ft 7 in (2615 mm)
- Machine Length with Blade: 16 ft 1 in (4906 mm)
- Track Gauge: 6 ft 6 in (1981 mm)
- Blade Width: 11 ft 1 in (3383 mm)
- Blade Capacity: 4.8 yd³ (3.6 m³)
- Blade Dig Depth: 21 in (536 mm)
- Blade Tilt: 1 ft 6 in (468 mm)
- Fuel Tank Capacity: 69.2 gal (262 L)
- Hydraulic Tank Capacity: 26.9 gal (102 L)
- Top Speed (Fwd/Rev): 5.5 mph (8.9 kph)
- Ground Bearing Pressure: 4.66 psi (32.1 kPa)
- Implement Pump Type: Fixed-Displacement Gear Pump
- Hydraulic Flow: 25 gal/min (95 L/min)
- Hydraulic Pressure: 3200 psi (220.6 bar)
- Operating Weight: 31,943 lb (14,489 kg)
Safety and Usage Guidelines
- ROPS/FOPS cab rated for rollover and falling object protection according to ISO 3471/3499
- Operator Presence System prevents machine operation unless the seat is occupied
- Hydrostatic transmission allows safe, smooth stops and fine blade control without gear shifting
- Wide operator visibility with low-sloped hood for improved sightlines to the blade and tracks
- Optional rearview camera and mirror package support safer operation in congested work areas
- Automatic park brake engages when machine is idle or unoccupied for added security
- Accessible daily service points reduce risk of slips or falls during maintenance
- Low ground bearing pressure (4.66 psi) reduces disturbance on sensitive terrain or finish-grade surfaces
- Cab includes climate controls and ergonomic design to reduce fatigue on long workdays
- Compliant with ISO braking, steering, and structural safety standards for professional jobsite use
