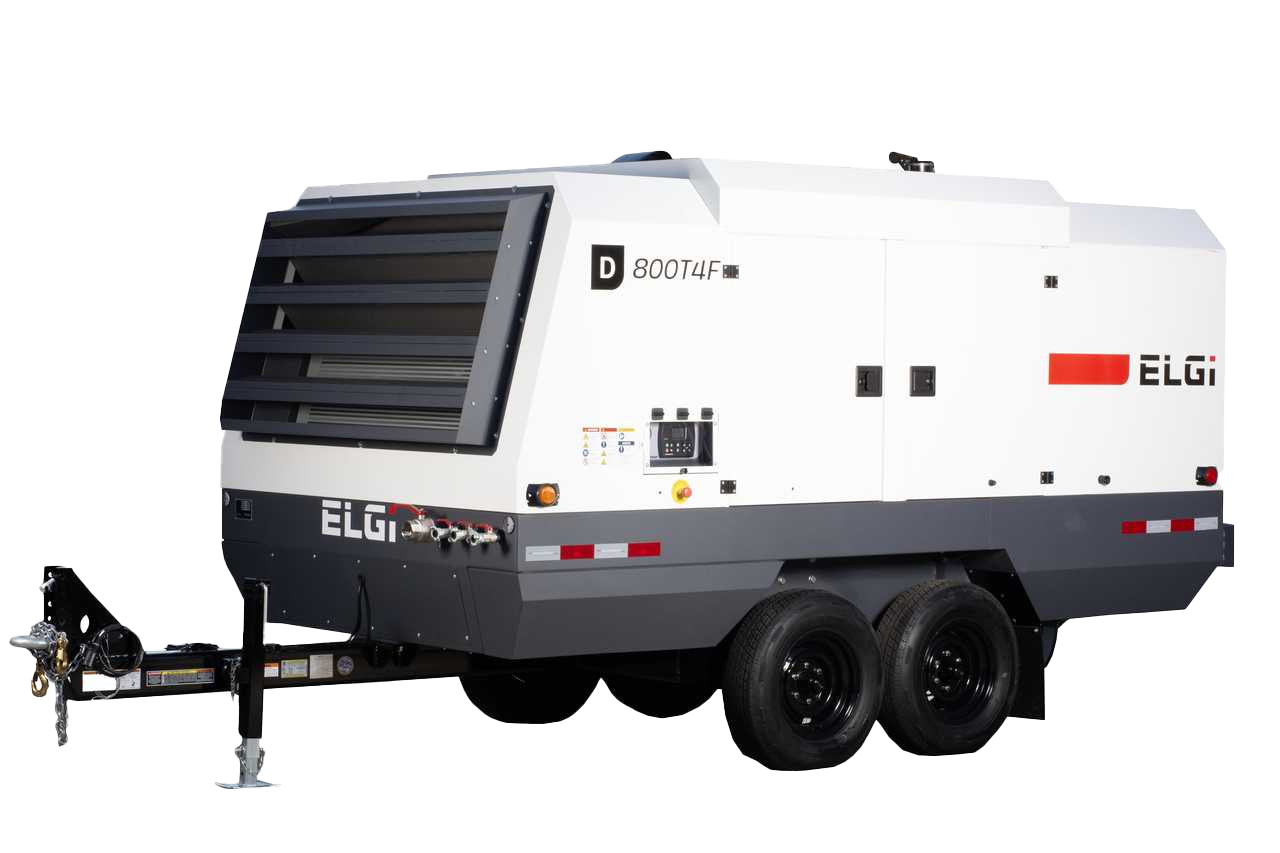

ELGi D800T4F 254HP Diesel Air Compressor
The ELGi D800T4F 254HP Diesel Air Compressor is a powerful and reliable solution for high-demand compressed air applications. With an impressive 800 CFM output at 150 PSI, this unit is driven by a robust FPT NEF 67 turbocharged engine and built with a durable 4-stroke, water-cooled system. Designed for performance and endurance, it features a 100-gallon fuel tank, dual 12V batteries, and an air/oil cooling system for efficient operation in extreme environments. Optional features like an internal aftercooler, cold weather kit, and long-life service kits make it a versatile and cost-effective solution for job sites.
Equipment Specifications
- Model: D800T4F
- Compressor Type: Direct Drive, Air/Oil Cooled
- Operating Pressure: 150 psi
- Minimum Working Pressure: 73 psi
- Free Air Delivery: 800 CFM
- Oil Cooling Capacity: 14.53 gal
- Air Outlet Temperature: 105°F + Ambient
- Outlet Valves: 3 x 3/4″ + 1 x 2″
- Battery Capacity: 2 x 12V 132Ah 950A
- Fuel Tank Capacity: 100 gal
- Fuel Consumption: 8.7 gph
- Dimensions (with running gear): 201″ L x 77″ W x 93″ H
- Dry Weight (with running gear): 8,175 lbs
Engine Specifications
- Engine Make: FPT
- Engine Model: NEF 67
- Engine Type: 4-Stroke Turbo Intercooler, Common Rail
- Displacement: 6700 cc
- Number of Cylinders: 6
- Aspiration: Turbo Intercooler
- Max Engine Power: 254 HP @ 2200 RPM
- Max Engine Speed: 2100 RPM
- Minimum Engine Speed: 1400 RPM
- Cooling System: Water
- Cooling System Capacity: 8.98 gal
- Lubrication System: Oil
- Lubrication Capacity: 4.75 gal
- Max Ambient Temperature: 122°F
- Min Working Temperature: 14°F
Safety and Usage Guidelines
- Ensure unit is on a level surface before operation
- Perform routine pre-start inspections on hoses, filters, and fluid levels
- Use proper PPE including hearing protection and safety glasses
- Do not refuel while engine is running or hot
- Shut down immediately if irregular engine sounds or warning lights occur
- Maintain service schedule with genuine service kits to ensure longevity
- Monitor air outlet temperature and ambient conditions to avoid overheating
