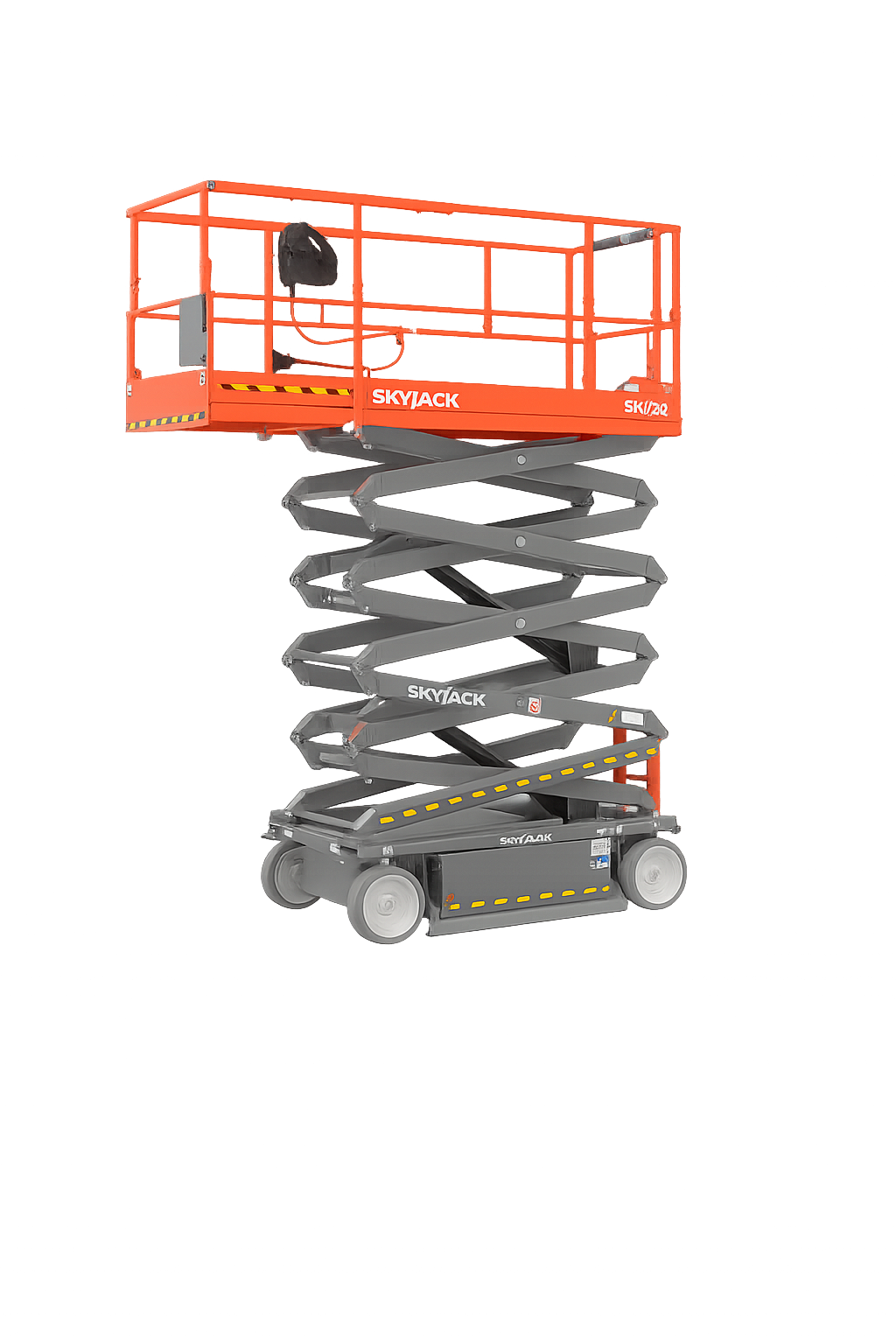

32′ Scissor Lift, Standard, Electric
Description
This electric scissor lift delivers reliable, zero-emission performance with a 38-foot working height and 700 lb lift capacity. Engineered for tight indoor and outdoor worksites, it features a narrow 47-inch width, smooth maneuverability, and a 4-foot extension deck for added reach. With quick lift times, solid non-marking tires, and a quiet electric drive system, it’s perfect for facility maintenance, installation work, and construction in confined or sensitive areas.Specifications
- Work Height: 37′ 8″ (11.48 m)
- Raised Platform Height: 31’ 8” (9.65 m)
- Lowered Platform Height: 50” (1.27 m)
- Overall Width: 47” (1.19 m)
- Overall Length: 91.6” (2.32 m)
- Stowed Height (Rails Up): 94” (2.39 m)
- Stowed Height (Rails Down): 78.5” (1.99 m)
- Platform Width (Inside Dimension): 42” (1.07 m)
- Platform Length (Inside Dimension): 83” (2.11 m)
- Extension Deck (Roll Out): 4’ (1.22 m)
- Wheelbase: 69” (1.75 m)
- Weight: 5,496 lbs (2,492 kg)
- Gradeability: 25%
- Turning Radius (Inside): 28” (0.71 m)
- Turning Radius (Outside): 104” (2.64 m)
- Lift Time (With Rated Load): 50 sec
- Lower Time (With Rated Load): 30 sec
- Drive Speed (Stowed): 2.0 mph (3.2 km/h)
- Drive Speed (Raised): 0.6 mph (1.0 km/h)
- Maximum Drive Height: Full Height
- Capacity: 700 lbs (318 kg)
- Distributed Capacity (Main Platform): 450 lbs (204 kg)
- Distributed Capacity (Extension Deck): 250 lbs (113 kg)
- Local Floor Load (With Rated Load): 124 psi (856 kPa)
- Overall Floor Load (With Rated Load): 222 psf (1083 kg/ m²)
- Maximum # of Persons: 2
- Tire Type: Solid, N/M
- Tire Size: 16 x 5 x 12
Safety & Usage Guidelines
- Only trained and authorized personnel may operate this equipment.
- Always inspect the unit before use; check for damage or malfunction.
- Do not exceed rated platform or deck capacities.
- Use fall protection equipment if required by local regulations.
- Never operate the lift on uneven, soft, or sloped surfaces.
- Maintain safe clearance from overhead hazards and power lines.
- Do not drive the unit while the platform is elevated unless on a smooth, level surface.
- Ensure all safety gates are closed before elevating.
- Shut off power and remove key when not in use or during maintenance.
